M98 SUMP PUMP SUB 1/2 HP CI AUTO 115V 1.5 DISCH

PART ZOE 98-0001
SUPPLIER Zoeller®
SUPPLIER PART # 98-0001
Calculating price...
QUANTITY

About this item

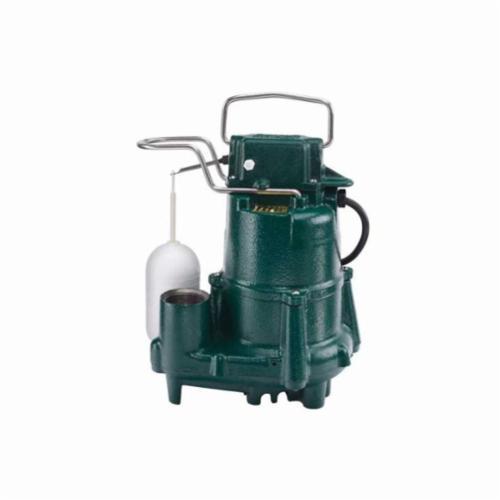

Zoeller® Effluent/Dewatering Submersible Pump, Automatic, Series: Flow-Mate M98, 73 gpm, 1-1/2 in Outlet, 23 ft Maximum Head, 1/2 hp, 115/230 VAC, 9.4 A, 60 Hz, 1 ph, 1725 rpm Motor, Non-Clogging Vortex Impeller, 130 deg F, Oil Fed Bearing, Cast Iron, 12-1/16 in H x 10-1/8 in W

This Flow-Mate model submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. This durable cast iron pump includes a epoxy powder coated finish to prevent corrosion and is designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance. This attention to detail is an inherent feature of every pump, making it one of the most reliable in the industry.

CSA/US Certified|SSPMA Certified|UL Listed
Amperage Rating 9.4 A
Bearing Type Oil Fed
Dimensions 12-1/16 in H x 10-1/8 in W
Flow Rate 73 gpm
Frequency Rating 60 Hz
Horsepower 1/2 hp
Impeller Type Non-Clogging Vortex
Material Cast Iron
Maximum Head 23 ft
Motor Speed 1725 rpm
Outlet Size 1-1/2 in
Phase 1
Series Flow-Mate M98
Temperature Rating 130 deg F
Type Automatic
Voltage Rating 115/230 VAC
Brand Zoeller®
Country of Origin US
  • Float operated 2-pole mechanical switch
  • Corrosion-resistant, powder coated epoxy finish
  • No sheet metal parts to rust or corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • No screens to clog, all castings are cast iron class 25 to 30 25000 tensile strength, watertight, neoprene square ring between motor and pump housing
  • Permanent split capacitor motor, oil filled and hermetically-sealed, automatic reset thermal overload protection
  • Watertight neoprene square ring between motor and pump housing
  • Cast iron switch case, motor, pump housing and base, bearings, upper and lower oil fed cast iron, carbon and ceramic shaft seal
  • Entire unit pressure-tested after assembly
  • Class B insulation, 9-1/2 in/3 in auto On/Off points
  • 1/2 in spherical solid handling, 15 ft cord, oil filled cooling
  • Auto reset thermal overload motor protection
  • Cast iron cap, motor and pump housing, base, carbon and ceramic mechanical seals, engineered plastic impeller, stainless steel hardware, neoprene gasket
  • AISI 1215 cold roll steel motor shaft
  • 1-1/2 in NPT discharge
