E840 GRINDER PUMP 2HP 230V NONAUTO

PART ZOE 840-0004
SUPPLIER Zoeller®
SUPPLIER PART # 840-0004
Calculating price...
QUANTITY

About this item

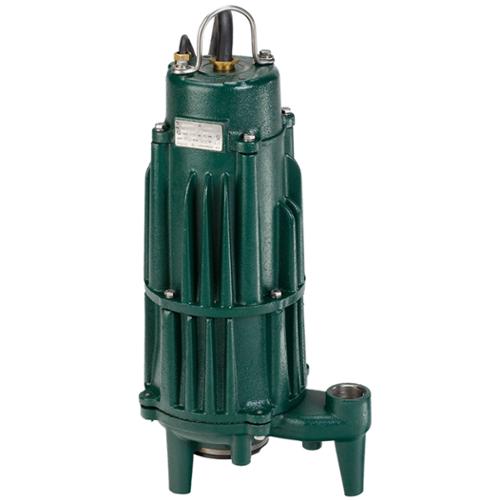

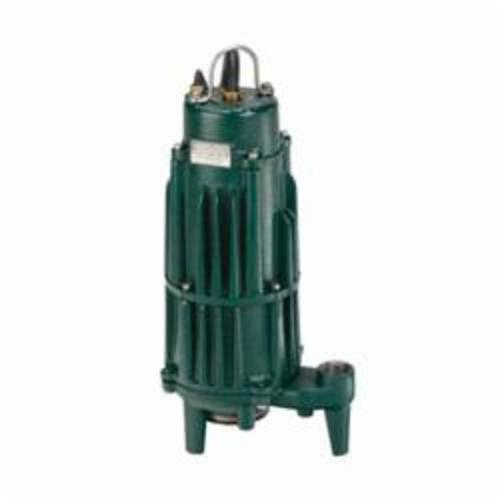

Zoeller® The Shark® Grinder Pump, Dual Seal, Series: 840, 45 gpm Maximum, Non-Automatic, 1-1/4 in NPT Outlet, 104 ft Maximum Head, 2 hp, 230 VAC, 17.2 A, 1 ph ph, 20 ft Cord, 130 deg F, Cast Iron

The industry's only automatic, reversing grinder pump is designed to pump raw sewage in a sewage ejector application. Solids are cut into a slurry using the industry proven "scissor like" Tri-Slice® cutter technology. This includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8". The 230 Volt, 2 HP, Model 840 utilizes a vortex impeller. Every time the pump is called to run, the cutter assembly will pump a different direction as the previous rotation. This action reduces the potential of stringy material wrapping around the cutter assembly. The Shark Series® E840 should use a control panel and control switches allowing it to turn the pump on when called upon. The Model 840 is constructed with a cast iron body, enabling it to withstand the most demanding sewage ejector applications. The pump's identification tag, handle, and hardware are made of high-quality stainless steel preventing rust and corrosion. Everything about the pump is designed in a way that allows it to hold up in the toughest sewage conditions. Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right out of the box.

CSA Certified|UL Listed
Amperage Rating 17.2 A
Automatic/Non Automatic Non-Automatic
Cord Type 20 ft
Horsepower 2 hp
Material Cast Iron
Maximum Flow Rate 45 gpm
Maximum Head 104 ft
Outlet Size 1-1/4 in NPT
Phase 1
Series 840
Temperature Rating 130 deg F
Type Dual Seal
Voltage Rating 230 VAC
Brand Zoeller®
Country of Origin US
  • Durable, heavy duty, finned cast iron construction
  • Oil filled, hermetically sealed motor with class F insulation
  • Hardened stainless steel cutter and disc
  • Cutters protected from abrasive solids
  • Cutters can automatically alternate direction to enhance blade life and free hang-ups (automatic or manual)
  • Stainless steel screws, bolts and lifting bail
  • Easily adapts to many existing competitor's rail systems
  • Tandem seals with leak detection
  • Automatic thermal overload protection (1 ph)
  • Legs for free-standing installation
  • Corrosion resistant, powder coated epoxy
  • 1-1/4 in NPT vertical discharge
  • Pump systems and reversing controls
