Home Pumps Hydronic Pumps UP43-75BF 1/6HP 230V BRZ FLNG MNT PUMP

UP43-75BF 1/6HP 230V BRZ FLNG MNT PUMP

PART GRU 52722369
SUPPLIER Grundfos
SUPPLIER PART # 52722369
Calculating price...
QUANTITY

About this item

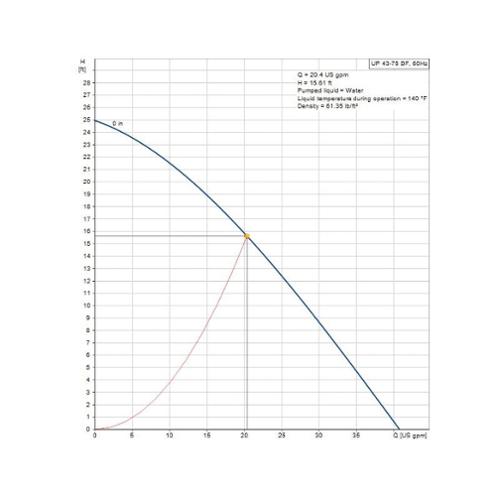

Grundfos, 52722369, Circulator Pump, Canned Rotor, Series: UP Series, 20.4 gpm Flow Rate, 24.94 ft Maximum Head, 220 W Power, 230 VAC, 1.07 A, 60 Hz Frequency, 1 ph, 145 psi Maximum, Composite PES Impeller, 140 deg F, Radial/Thrust Bearing, 6-11/16 in W x 8-1/2 in H Dimensions

The Grundfos circulator pumps, Series UP are specifically designed for heating systems. The pumps are also suitable for circulation of hot domestic water and for circulation of liquid in cooling and air conditioning systems.

CSA Certified|UL Listed
Amperage Rating 1.07 A
Bearing Type Radial/Thrust
Dimensions 6-11/16 in W x 8-1/2 in H
Flow Rate 20.4 gpm
Frequency Rating 60 Hz
Impeller Type Composite PES
Maximum Head 24.94 ft
Maximum Pressure 145 psi
Phase 1
Power Rating 220 W
Series UP Series
Temperature Rating 140 deg F
Type Canned Rotor
Voltage Rating 230 VAC
Brand Grundfos
  • Ceramic shaft, radial bearings and carbon thrust bearing
  • Stainless steel rotor can and bearing plate
  • Impeller of corrosion-resistant material
  • No additional motor protection is required
  • Non-electronically controlled circulator pumps for domestic building with speed control
  • Flange pipe connection
  • Bronze pump housing
  • Large stator
  • 1-speed motor
