Home Hangers, Struts & Fasteners Beam Clamps & Hangers BEAM CLAMP BLK 5/8 WIDE THROAT TOP BEAM

BEAM CLAMP BLK 5/8 WIDE THROAT TOP BEAM

PART GRH94-00.625
SUPPLIER Anvil®
SUPPLIER PART # 0500009238
Calculating price...
QUANTITY

About this item

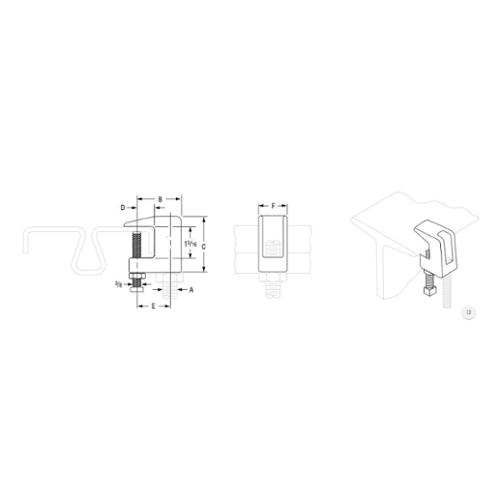

Anvil® Top Beam C-Clamp, Wide Throat, Series: FIG 94, 5/8 in Rod, 1200 lb, 60 in-lbs Torque, Ductile Iron, Black Oxide, 450 deg F

ANSI/MSS SP-69/SP-58 (Type 19)|Federal Specification A-A-1192A (Type 19)/WW-H-171-E (Type 19)|cULus Listed|UL Listed
Finish Black Oxide
Load Capacity 1200 lb
Material Ductile Iron
Rod Size 5/8 in
Series FIG 94
Specifications 60 in-lbs Torque
Temperature Rating 450 deg F
Type Wide Throat
Brand Anvil®
Country of Origin US
  • Provides clamping to bar joists which are directly under roof installations.
  • Provides clamping to bar joists which are directly under roof installations
  • Provides for vertical hanger rod installed offset from the edge of the beam flange
  • Malleable iron body assures full thread engagement of rod
  • Size of clamp is determined by size of rod to be used
  • Follow maximum recommended set screw torque values PEX MSS-SP-69
  • Hardened steel cup point set screw and locknut
  • For use under roof installations with bar joist type construction, or for attachment to the top flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joists or flange does not exceed 1-5/16 in
